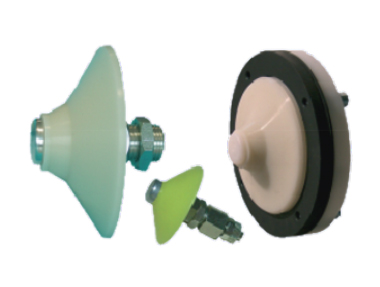

VB & VBE Vibrating Bin Aerators
VB & VBE Vibrating Bin Aerators
Description and working principle
The double action of the Vibrating Bin Aerator helps to improve material flow of materials with poor flowability. Thanks to its special design features, the Vibrating Bin Aerator, which does not require any specific operating air pressure, adds vibration to aeration of the material.
All types of dry materials can be handled.
Performance and Technical features
- Working pressure: min. 2 bar (29 psi), max. 6 bar (87 psi)
- Air consumption at 2 bar (29 psi): 280 dm3/min (10 cfm)
at 4 bar (58 psi): 660 dm3/min (23 cfm)
at 6 bar (87 psi): 1200 dm3/min (42 cfm)
Advantages and innovative features
- Robust design
- Self-cleaning
- Anti-abrasive
- Easy to install
- Wide range of air pressure
- For both powders and granular products
- Food-grade
