IPM Differential Pressure Gauges
IPM Differential Pressure Gauges
Description and working principle
The IPE-type Electronic Differential Pressure Switch by TOREX® supervises by means of an electronic reading device activated by a diaphragm the excess pressure rising inside hoppers, bins or silos during the filling and purging of the tanker.

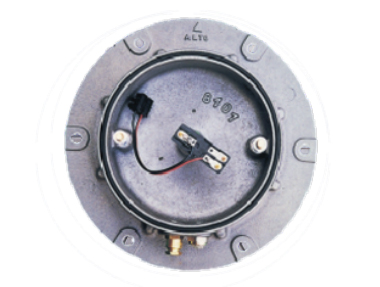

The equipment consists of
- Self-cleaning wear and temperature-resistant membrane
- Body made of aluminium alloy
- Electronic card
- Assembly fittings (bolts and gasket)
Performance and technical features
- Operating temperature: -30°C to +80°C (-22°F to 176°F)
- Cable size: 2 x 1.5 mm² (2 x 0.002 sq in)
- Electronic card
- Protection: IP 55
- Pre-set activating pressure: 0.04 bar (0.6 psi)
- To be installed on top of IPX-type spigot (to be ordered separately)
