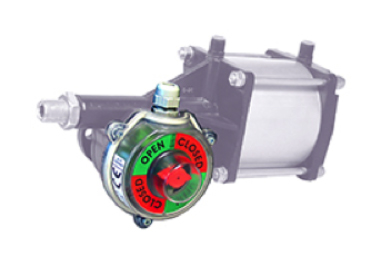

Electropneumatic Actuators CP (Piston Type)

Electropneumatic Actuators CP (Piston Type)

Description and working principle

CP- type actuators are electropneumatically operated rack and pinion-type actuators suitable for 90° opening and closing of VFS-type Butterfly Valves and VSS-type Arc Valves by WAM®.

Performance and technical features

Operating pressure 2 to 7 bar

CP actuators come with splined shaft coupling according to DIN 5482.

Accessories

  • Position signalling device MIC 23
  • Limit switch mount LSM 0
  • Limit scwitches LSM 4 and LSM 6
  • 5/2 solenoid valves V5V8 and V5V4
  • Solenoid coils BOB 24-48-110-230 V DC or 50 Hz AC

Advantages and innovative features

  • Sturdy and compact design
  • Universal interchangeability
  • Durability
  • Perfectly compatible accessories
  • Matchless cost effectiveness thanks to series production.
